New Mini PC Gamer EGPU Expansion Dock

Description

Caveats:

•  The Oculink interface does not support hot-swapping, so be sure to turn off the power when plugging or unplugging cables!
• The Oculink port has a “fixed lock” design, when unplugging the OCULINK port, you need to press the switch to unlock it.3）The built-in power supply is for Dock use only, please do not use it for other purposes.
• Hot plugging and unplugging is only available for TGX devices.

OCuLink & TGX Ports

The OCuLink interface provides 64Gbps of effective bandwidth for PCIe 4.0 x4 lanes, and the dock is hot-swappable for the TGX interface of the 2024 Lenovo ThinkBook 14+ / 16+ Core Edition laptops.

Device support:  Built-in PCIE x16 interface, the maximum power consumption of the graphics card supports 600W, which basically meets the needs of most existing graphics cards
Power input:  AC 220V~ 50/60Hz
OS: Support Mac & Windows (Win 11 22h2 or higher recommended)
Size:  22.5CM*11CM*6CM

What In Box

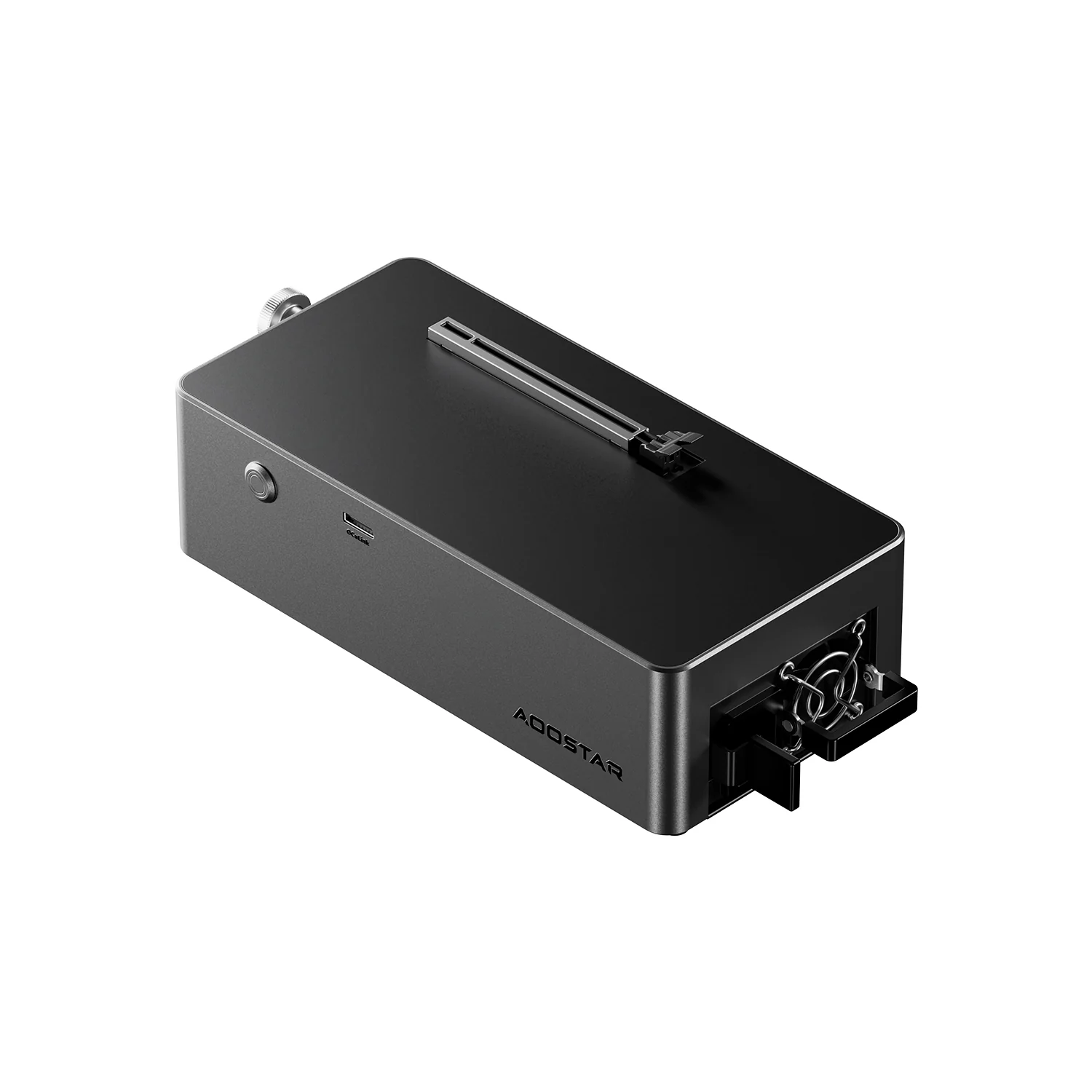

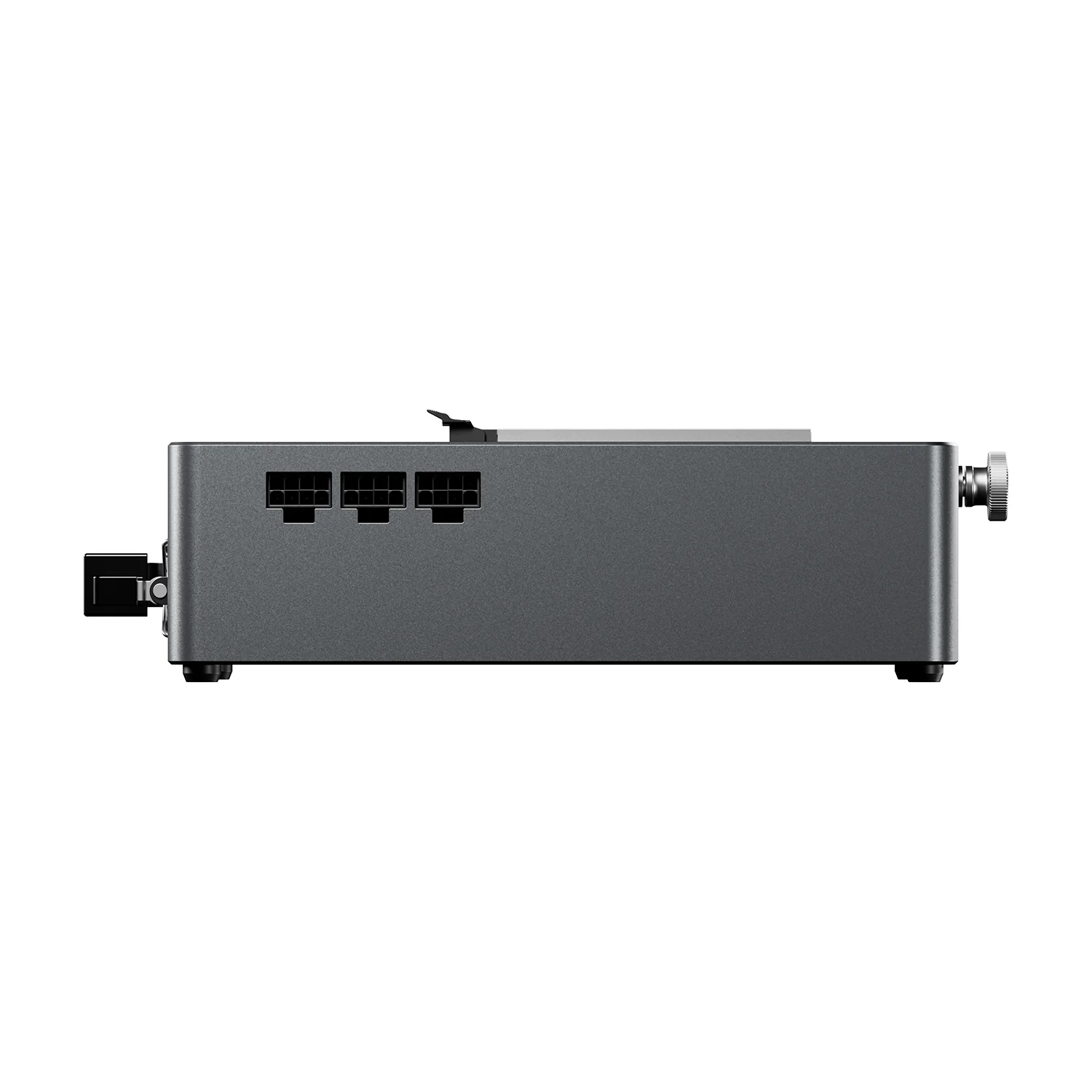

• 1 x AOOSTAR AG01 EGPU Dock
• 1 x Oculink cable
• 1 x 3 x 8-pin graphics card power connectors
• 2 x Switch Cable
• * The GPU is not included.
