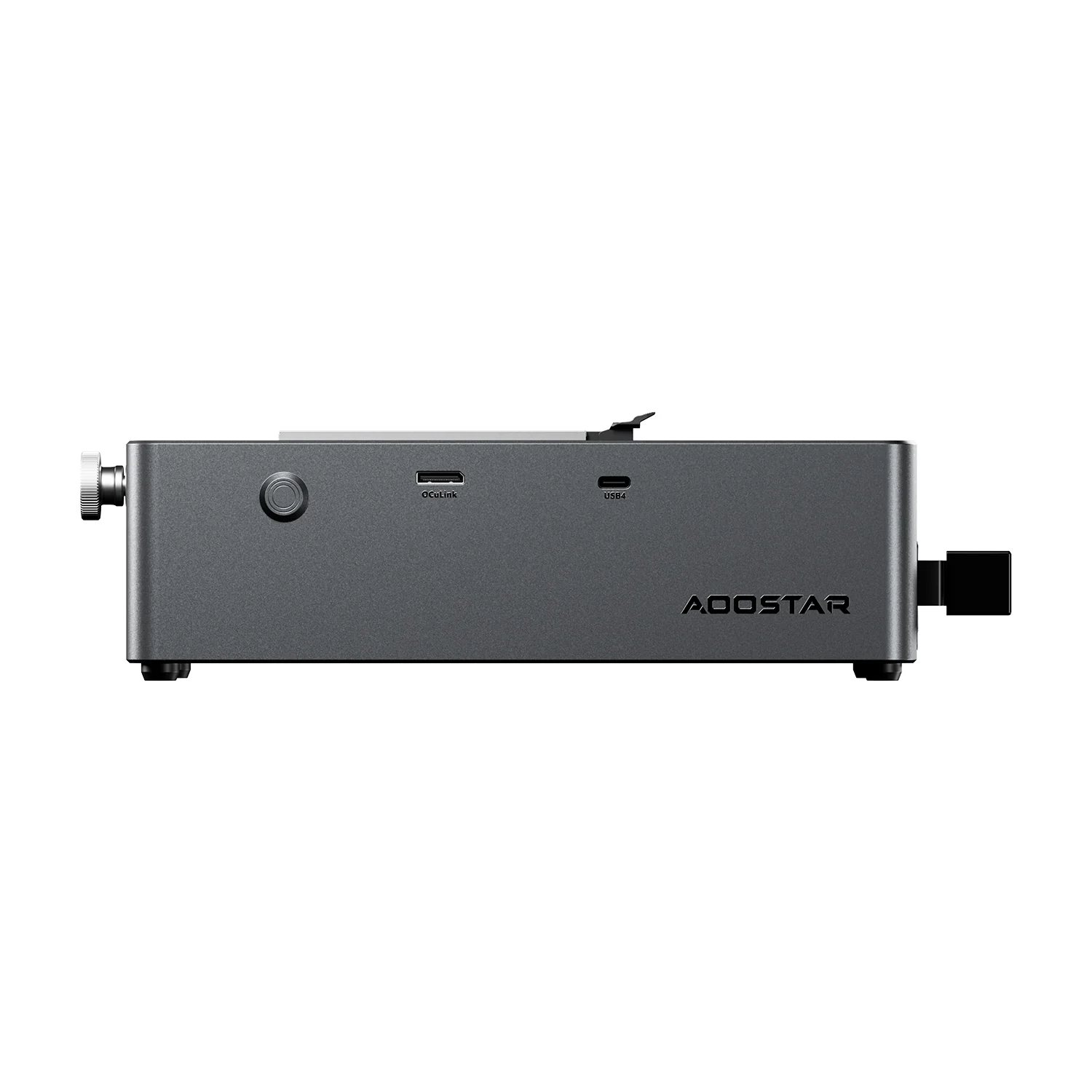

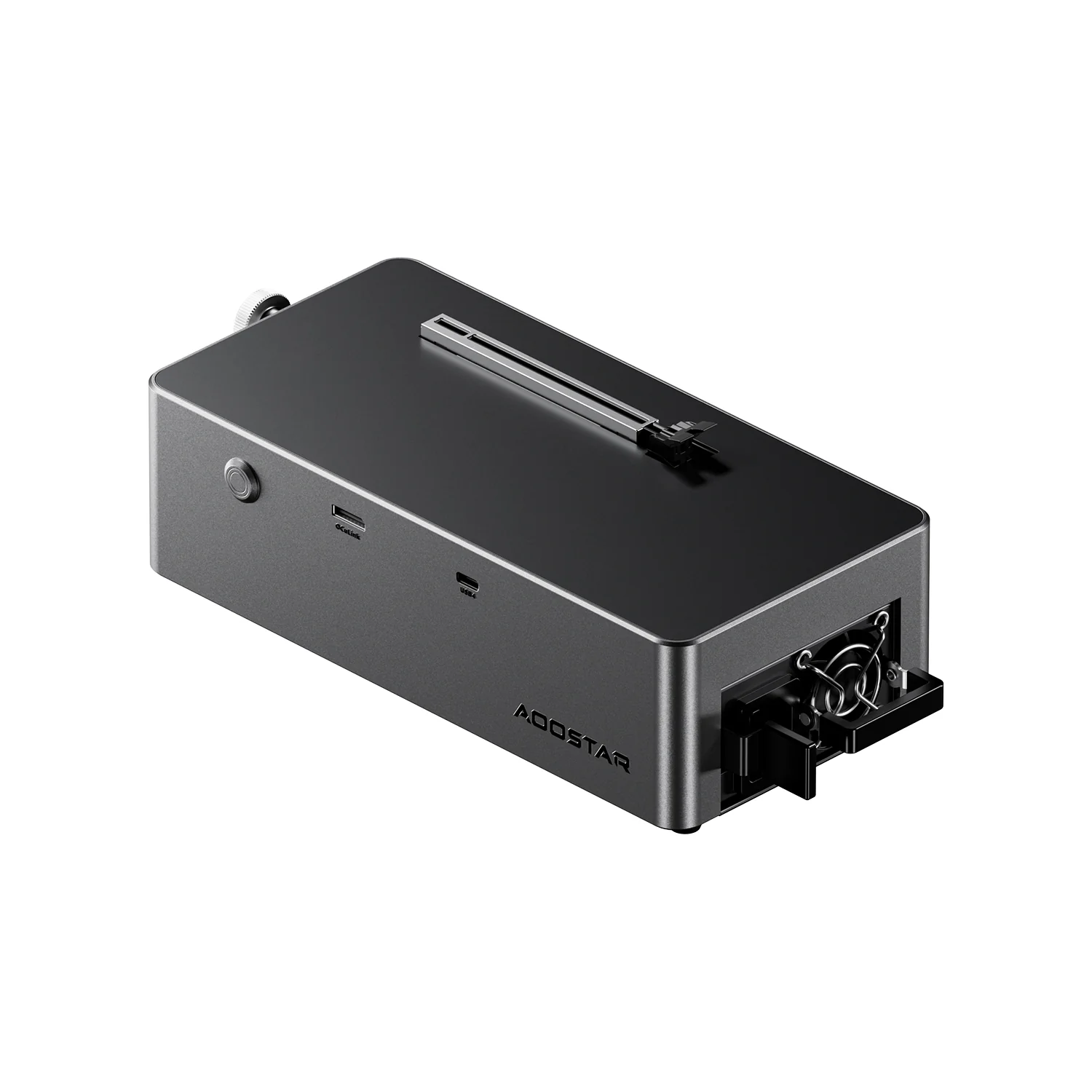

High Performance Mini PC Accessories EGPU Dock AOOSTAR AG02

Description

Caveats:

• The Oculink interface does not support hot-swapping, so be sure to turn off the power when plugging or unplugging cables!
• The Oculink port has a “fixed lock” design, when unplugging the OCULINK port, you need to press the switch to unlock it.
• The built-in power supply is for Dock use only, please do not use it for other purposes.
• Hot plugging and unplugging is only available for TGX devices.

Main Features:

The OCuLink interface provides 64Gbps of effective bandwidth for PCIe 4.0 x4 lanes, and the dock is hot-swappable for the TGX interface of the 2024 Lenovo ThinkBook 14+ / 16+ Core Edition laptops.

Device support:  Built-in PCIE x16 interface, the maximum power consumption of the graphics card supports 600W, which basically meets the needs of most existing graphics cards
Power input:  AC 220V~ 50/60Hz
OS: Support  Windows (Win 11 22h2 or higher recommended)
Size:  22.5CM*11CM*6CM

What In Box

• 1 x AOOSTAR AG02 EGPU Dock
• 1 x Oculink cable
• 1 x USB4cable
• 1 x Power supply
• 2 x Switch Cable
• * The GPU is not included.
